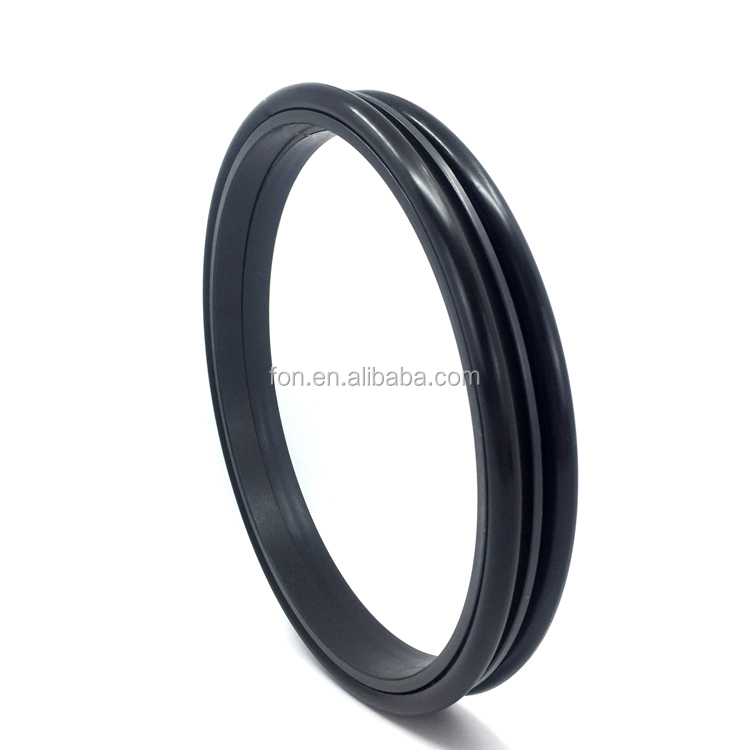

lwd 96.97 h-28 mechanical face seal CS3180 floating seal
Product Description
Introduction
Heavy duty static and dynamic sealing technology is concerned with providing sealing solutions for machinery applications in which conventional seal lack the required durability.
The drive mechanisms for tracked vehicles and construction machinery,or the power transmission equipment for conveyor systems,sand conditioning plant,concrete and cement mixers,mining machinery and similar heavy plant are subjected to extreme abrasive stresses in the environments in which they work.
Failures can severely disrupt operations,and repairs are very costly.
Our metallic mechanical face seals have served well in such arduous conditions for years.
Robust and efficient,they guarantee customers high serviceability,durability and maximum productivity of their equipment.

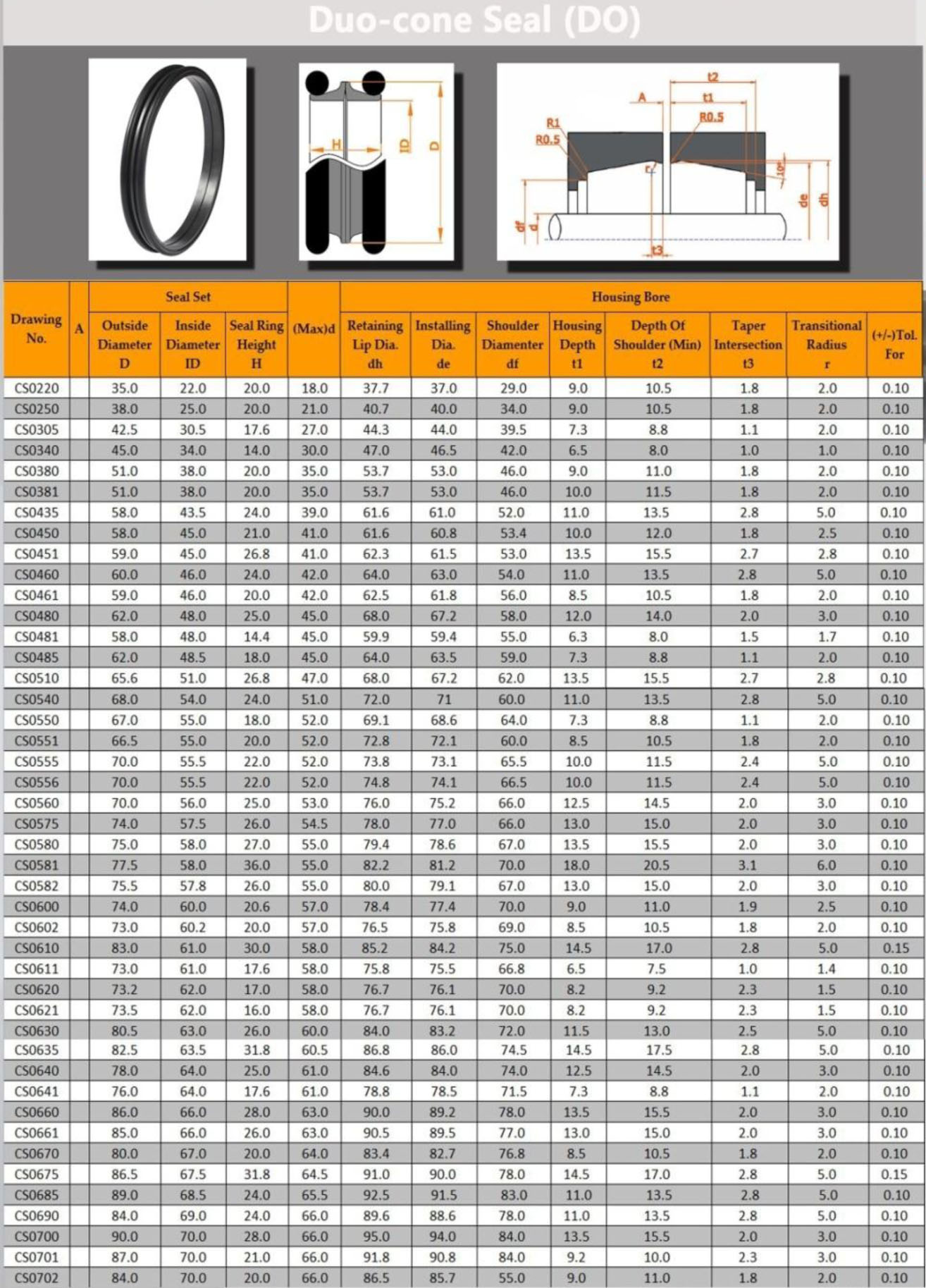

Product name | lwd 96.97 h-28 mechanical face seal CS3180 floating seal |
Metal seal ring Material | 15CrMo,15Cr3Mo |
O-ring Material | NBR,HNBR,Silicone |
Metal Hardness | 62-69HRC |
Inside diameter range | 22 to 1372mm |
Outside diameter range | 35 to 1422mm |
Life-span | 5000hours |
Customize | Yes |
OEM servica | Yes |
Package | 1.Individual Paper box+Carton 2.According to customer request |
Payment terms | Trade Assurance(Credit card,T/T)Paypal,L/C |
Parameters
Peripheral speeds of up to 10 m/sec can be effectively handled.
The frictional heat generated at the contact faces between the static and dynamic components of the seal must be dissipated by ensuring adequate lubricant action.
The seal faces must be continuously lubricated in order to prevent pick up or galling.
Corrosion during stationery periods must be avoided.
Housings must be machined to recommended sizes and surface finished to ensure good static sealing
Cleanliness must be ensured during assembly
Seal can withstand up to 3bar
Q:Are you manufacture?
A:Yes,we are
Q:Are you supply OEM service
A:Yes,and MOQ is 1pcs
Q:Are the sample free?
A:We can supply free sample if the value under 10USD
Q:How long is the delivery time?
A:For stand size is just 1 day,for non-standard one normally 1 month
Q:Guantee using life time?
A:5000 hours
