High Capacity 1000W Lifepo4 Portable Power Station

  • High Capacity 1000W Lifepo4 Portable Power Station
  • High Capacity 1000W Lifepo4 Portable Power Station
  • High Capacity 1000W Lifepo4 Portable Power Station
  • High Capacity 1000W Lifepo4 Portable Power Station

High Capacity 1000W Lifepo4 Portable Power Station

    Unit Price: 199.99~699.99 USD
    Min. Order: 1 Piece/Pieces
    Packaging: Strictly follow UN38.3
    Transportation: Ocean,Land,Air,Express
    Supply Ability: 10000 Piece/Pieces per Day
    Port: Shenzhen Port

Product Description

Details Images
Function description of front pane:
NO.
Function description
1
Display screen
7
QC3.0 output port
2
DC switch
8
USB-C PD3.0 60W output port
3
DC5.5 12V output port
9
USB 5V2.4A output port
4
LED Floodlight
10
AC switch
5
Cigarette lighter port
11
AC output port
6
DC input port
12
LED switch

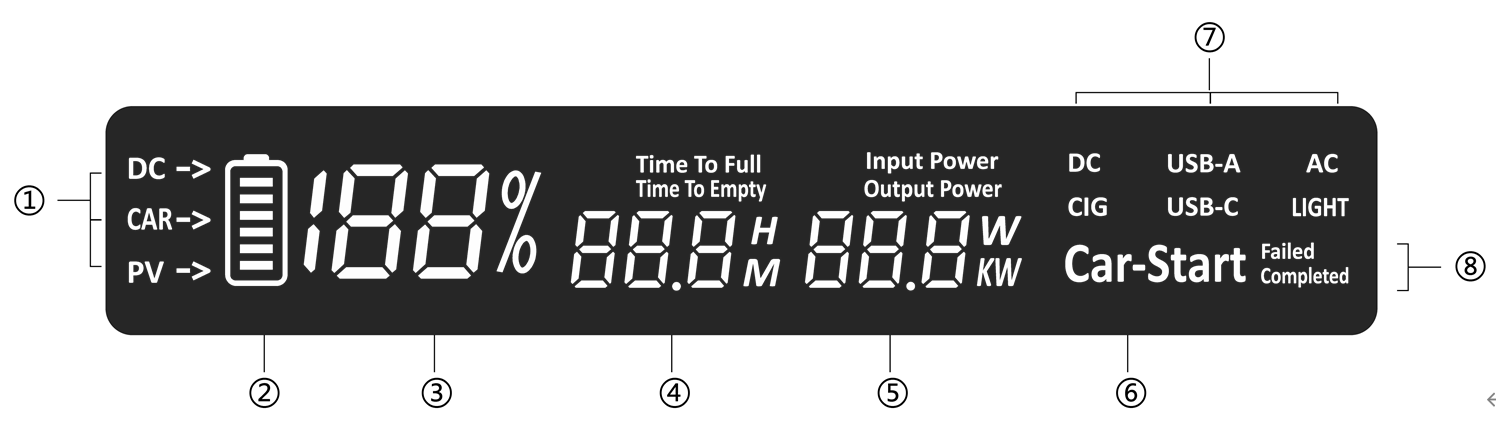

Function description of front panel:
NO.
Name
function
1
charge indicator
Respectively“DC->”/“CAR->”/“PV->”,Represents different charging modes.
2
Electricity Icon
The battery power is displayed in six cells, and the charging will indicate the
battery power by running horse.
3
Battery Indicator
According to the percentage, the battery power is 0%-100%.
4
Residual time indication
“Time To Full”Display full remaining time,“Time To Empty”Display the remaining time of emptying,The corresponding number will be below+H or M Represents the remaining hours and minutes.
5
Total power indication
number+Wcombination,Polling shows the total power of charging and discharging,
6
Car-Start
Constant current output
7
Interface status
indication
DC,CAR,USB-A,USB-C,AC,Light,Represents the corresponding interface
state.
8
Car Start State Indicator
The three right-most display combinations, Car-Start/Car-Start.Failed/Car-Start Completed, represent that the car is starting and charging, starting and charging fails, starting and charging is completed.

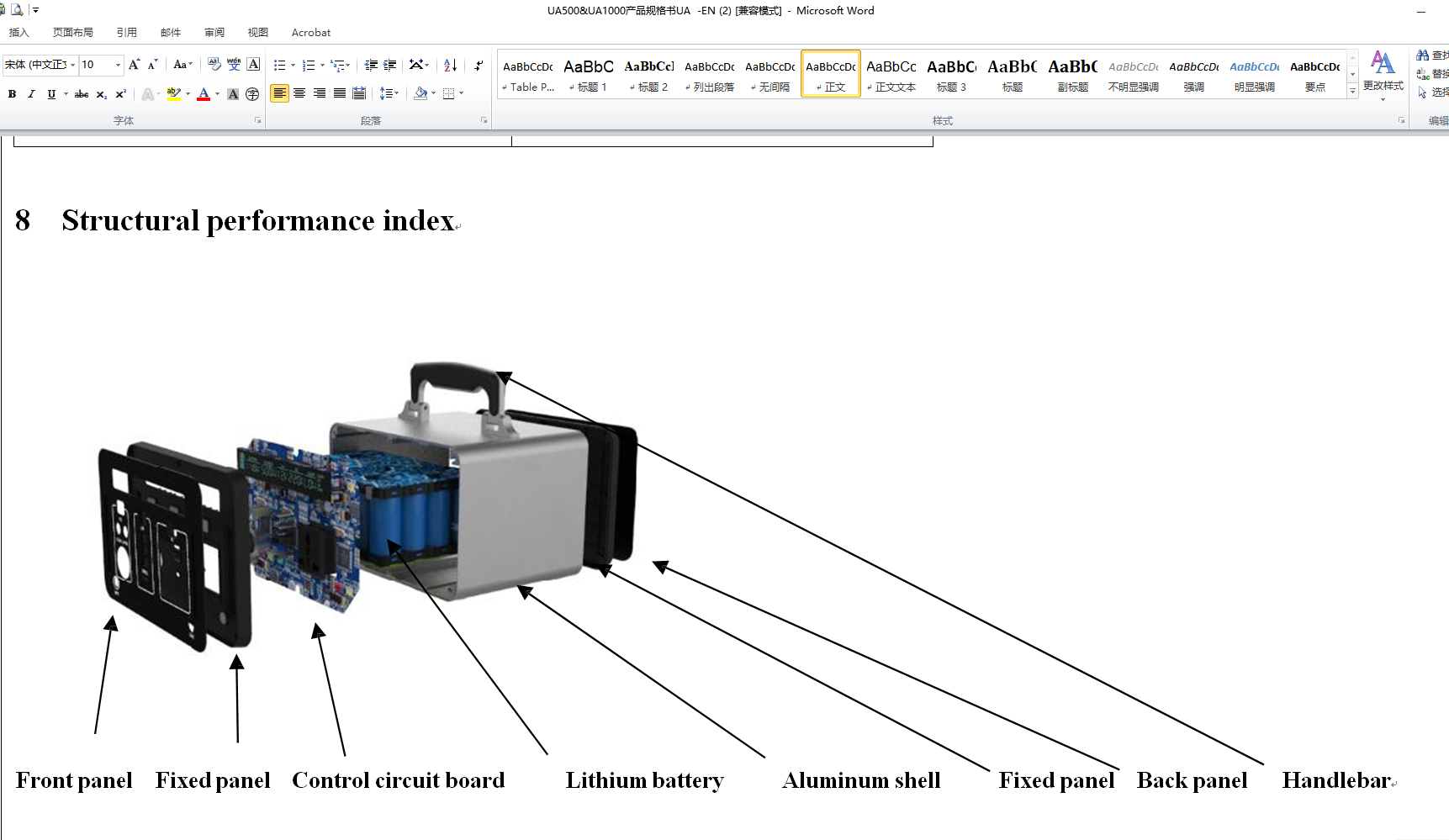

Structural performance index:
Products Description
project
parameter
UA500
UA1000





Battery
Battery class
Lithium ion battery
Battery power
500Wh
1000Wh
Total capacity
135200mAh
270,000mAh
voltage
14.8V
14.8V
ampere-hour
33.8Ah
67.5Ah
cycle life
800 cycles
800 cycles
BMS
Overvoltage, undervoltage, high and low temperature, three-stage overcurrent, short circuit protection


AC output
output voltage
100-240V(Depending on the factory settings

in different countries and regions)
output frequency
50-60HZ(Depending on the factory settings

in different countries and regions)
AC500W about 30 Minutes
AC1000W about 5 Minutes
output power
AC400W about 65 Minutes
AC800W about 60 Minutes
AC300W about 85 Minutes
AC500W about 100 Minutes
AC200W about 130 Minutes
AC300W about 160 Minutes
AC100W about 270 Minute
AC100W about 540 Minute
waveform
Pure sine wave
Pure sine wave
efficiency
70%load:>90%

DC output
DC5.5 port
DC12V5A
Cigarette lighter port
DC12V12A
efficiency
70%load:>93%

USB output
USB1
5V2.4A
USB2
5V2.4A
USB3
QC3.0,5-12V,18W(MAX)
USB-C output
PD3.0
5-20V,60W(MAX)


LED lighting
Low Bright
5W(MAX)
High Bright
10W(MAX)
SOS
NA
Flash
NA

Charge
Adapter
19V5A about 6h
19V5A about 12h

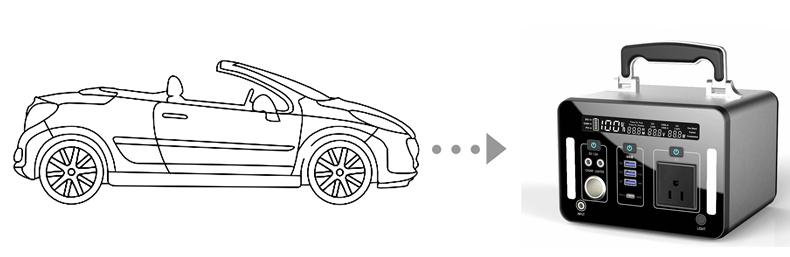

car
13V8A about 6h
13V8A about 12h

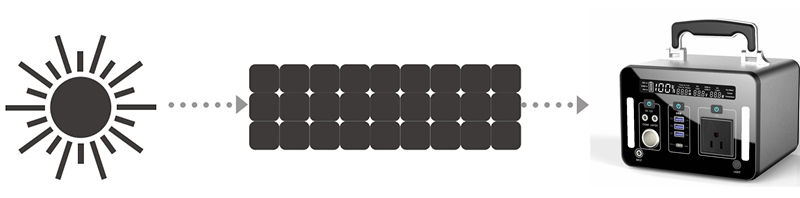

PV
24V5A about 7h
24V5A about 13h
Power consumption
Quiescent current
<100uA
<100uA
Product weight
Net weight
5.9KG
9.9KG
Gross weight
7.6kg
12KG
Product Dimension
Host
200*176*146
200*294*146
Packing
340*295*250mm
450*355*300mm
temperature
Charge
0~40℃(32~104℉)
discharge
-20~50℃(-4~122℉)
Device
Usage Time
LED light 5W
About 90 hours
Smartphone 5-7Wh
80+ time
Tablet PC 25- 42Wh
13+ times
DVD player20-25W
About 15-20 hours
Notebook computer 50W
About 9-18hours
Fan 30W
About 15 hours
Speaker 40W
About 9 hours
Desktop computer 100W
About 4.5 hours
32 inch LCD TV 98-156W
About 3-5hours
200 liters fridge
About 6-12 hours
Application

electric cooker (500W)
Power supply is about 1.6 hours

electric fan (60w)
Power supply is about 14 hours

car refrigrator
Power supply is about 38 hours

Mac book 12 HWD
Power supply is about 19 next
iPhone 12
Power supply is about 65 next
SLR camer
Power supply is about 45 next

UAV (OSPF 1 ERA)
Power supply is about 19 next

electric dril ( 345w )
Power supply is about 2 hours

projector ( 100W )
Power supply is about 5 hours
