Non-pressurized Evacuated Tube Solar

Non-pressurized Evacuated Tube Solar

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 50 Set/Sets
    Delivery Time: 14-21 Days
    Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment
    Productivity: 300000sets anually
    Brand: Linuo Ritter
    Transportation: Ocean
    Place of Origin: China
    HS Code: 84191910
    Port: Qingdao,Ningbo

Basic Info

Model No.: LP series

Product Description

For domestic water heating, available with 100,200 - 300 l tank.

Scope of delivery
-Tank
-Aluminum brackets
-Evacuated tubes

Installation types
- Flat roof, pitched roof

Advantages and benefits
- Cost effective solar water heating solution
-Long operating life time but low in maintenance costs and repair requirements.
-Short amortization rate
- Customized solar water heating solution

Performance characteristics
- High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation harmless to ozonosphere
- High-quality stainless steel in the inner tank to continuously maintain a good water quality.

Series 100L 150L 200L 250L 300L
Series number
LPE-100L(30) LPE-150L(30) LPE-200L(30) LPE-250L(30) LPE-300L(30)

Rated operating pressure Mpa 0.06 0.06 0.06 0.06 0.06
Gross surface area m2 1.33 2.01 2.69 3.37 4.06
Aperture area m2 0.92 1.37 1.62 2.26 2.7
Dimensions (L x W x H) mm 990x1976x1342 1370x1976x1342 1750x1976x1342 2130x1976x1342 2510x1976x1342
Water tank Tank dimensions mm φ450×990 φ450×1370 φ450×1750 φ450×2130 φ450×2510
Tank package dimensions mm 1060x550x490 1440x550x490 1820x550x490 2200x550x490 2580x550x490
Weight kg 16 20 24 29 34
Inner tank Material
Food Grade Stainless Steel SUS304-2B
Diameter / thickness mm φ350 / 0.4
Outer tank Material
White Painted Steel
Diameter / thickness mm φ450 / 0.4
Side cover
Blue Painted Steel
Insulation Material / thickness mm Polyurethane / 50
Tube Number pcs 10 15 20 25 30
Type
φ58 x 1800 mm vacuum tube
Tube package dimensions mm 1870 x 330 x 165
Bracket Material
Aluminum alloy
Colour
Silver white
Inclination degree 30°
Weight kg 5.5 6.5 8 10 11
Other parts Electric heating
No
Loading Qty Qty in 40HC
153 112 89 74 60

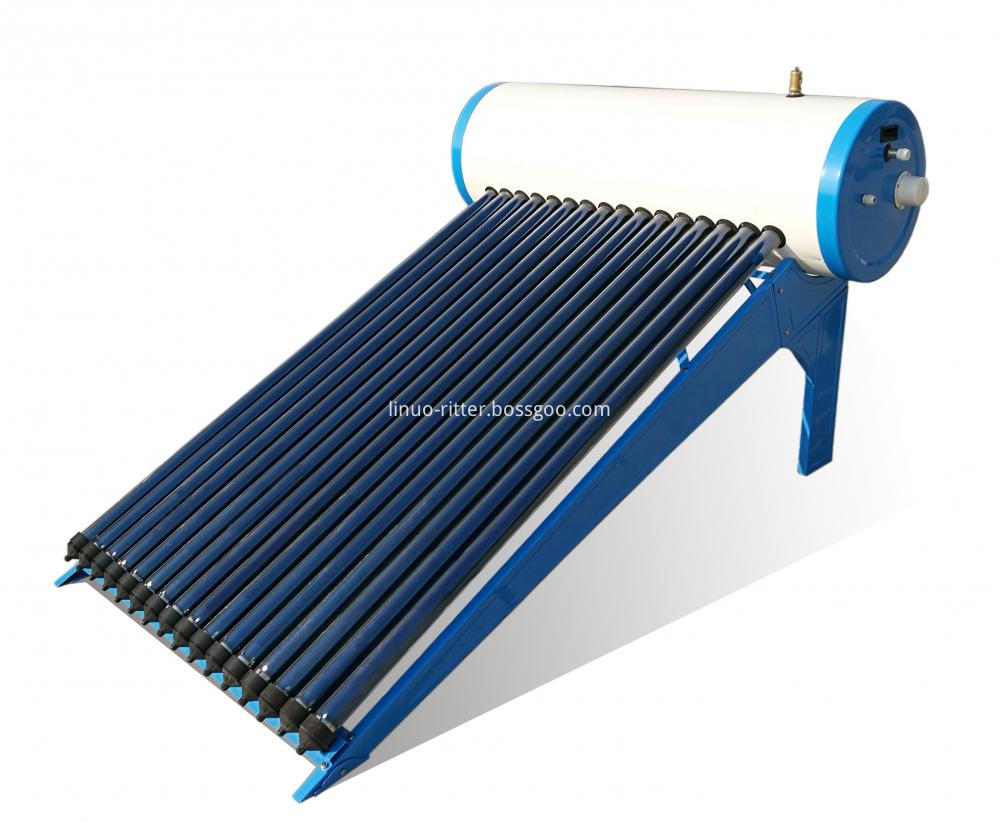

Non-pressurized Solar Water Heater
